Restreaming RTSP with FFmpeg and MediaMTX

If you've ever messed with IP cameras and RTSP video feeds, you might have run into a situation where VLC can access the stream without a problem, but the system meant to record that stream can't seem to do it. There's nothing more permanent than a temporary fix, so in this post I'll show you (and my future self) how to work around the issue.

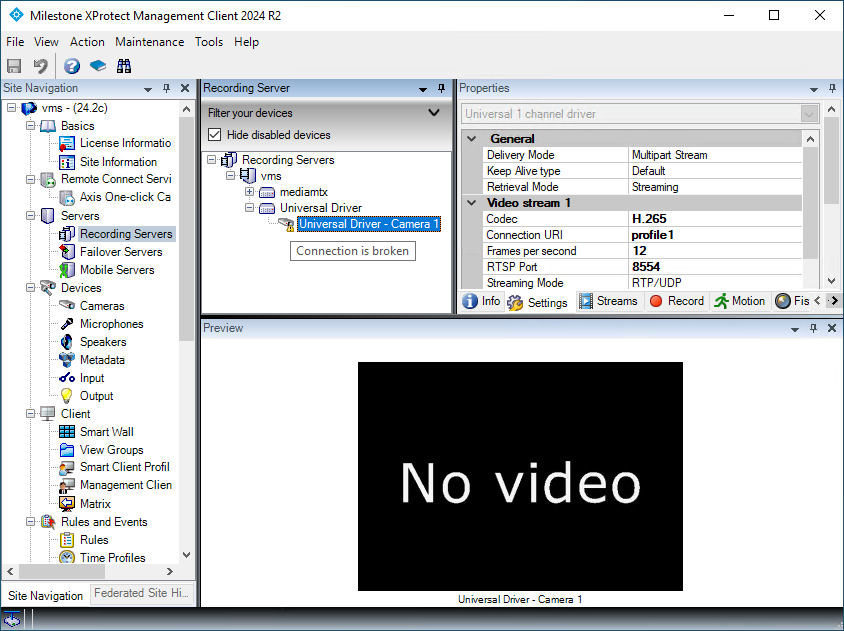

I am pulling an RTSP stream into XProtect, but there's nothing about this post that is exclusively for Milestone XProtect users. The screenshot below shows the issue I was dealing with this morning. While VLC could render the video without an issue, the universal driver in XProtect could not. The tooltip message when hovering over the camera was "Connection is broken".

Troubleshooting

In older versions of XProtect, it was really difficult to figure out how to turn on additional logging for the device pack drivers for troubleshooting, but in current versions you need only look in the C:\ProgramData\Milestone\XProtect Recording Server\Logs\Drivers folder for a subfolder matching the driver you're using. In my case, I took a look at the logs in the Universal1ChAdv folder and found the following messages...

Universal1ChAdv.log

INFO  NmGenericCodecs::CmRTSPConnection::RtspConnect()@RTSPConnection.cpp:122   RTSP Connect: [0] [10.10.10.10]
ERROR NmRealTimeStreamProtocol::CmRtspClient<class NmHTTP::CmHTTPMessageHeaders,class NmRealTimeStreamProtocol::CmRTSPResponse>::Describe()@RtspProtocol.h:890  Failed Describe request (code=401)
INFO  NmRealTimeStreamProtocol::CmSrtpSession::CmSrtpSession()@SrtpSession.cpp:29   SRTP: srtp_init() - OK
ERROR NmRealTimeProtocol::CmQueueManager::RecieveRtpDataPacket()@RtpQueueManager.cpp:116    @@ Failed to receive RTP packet
ERROR NmMultiCodec::CmMpegCodec::DoTestTimeout()@MpegCodec.cpp:356  MPEG frame timeout expired!
ERROR NmMultiCodec::CmMultiCodec::SetErrorState()@MultiCodec.cpp:704    Setting internal error state for device [10.10.10.10:21:8554]
INFO  NmGenericCodecs::CmRTSPConnection::RtspDisconnect()@RTSPConnection.cpp:737    RTSP Disconnect: [0] [10.10.10.10]
ERROR NmMultiCodec::CmMultiCodec::CloseMediaConnectionInternal()@MultiCodec.cpp:517 Closing the current media connection!
ERROR NmRealTimeStreamProtocol::CmRTSPResponse<class NmHTTP::CmHTTPMessageHeaders>::checkSession()@Responses.h:778  checkSession - CSeq does not match (5 != 6)
ERROR NmRealTimeStreamProtocol::CmRtspClient<class NmHTTP::CmHTTPMessageHeaders,class NmRealTimeStreamProtocol::CmRTSPResponse>::Teardown()@RtspProtocol.h:587  Teardown failed (code=200)
INFO  NmRealTimeStreamProtocol::CmSrtpSession::~CmSrtpSession()@SrtpSession.cpp:53  SRTP: srtp_shutdown() - OK
INFO  CloseMediaStream()@DeviceFunctions-OSD.cpp:1251   ENTER CloseMediaStream(10.10.10.10:21:8554,0,0,0)
ERROR NmMultiCodec::CmMultiCodec::CloseMediaConnectionInternal()@MultiCodec.cpp:517 Closing the current media connection!
INFO  NmGenericCodecs::CmRTSPConnection::RtspDisconnect()@RTSPConnection.cpp:737    RTSP Disconnect: [0] [N/A]

Unfortunately I have no idea what I'm looking at here. All I can tell is that we attempt to connect, and fail to receive an RTP packet. Actually, srtp_init() suggests to me that we're attempting to negotiate a secure real-time transport protocol connection, and based on the following messages I guess we fail to negotiate that connection or we hit a timeout before we receive any frames, shut down, and retry. In any case, I'm impatient so I looked to FFmpeg to solve my problems. A quick search led me to the following FFmpeg command and arguments to "re-stream" an RTSP stream...

Using FFmpeg to syndicate an RTSP feed without transcoding

ffmpeg -rtsp_transport tcp -i "rtsp://username:password@10.10.10.10:8554/profile1" -c:v copy -f rtsp rtsp://localhost:8554/profile1

Media Router

This looked like it was working, but I misunderstood what FFmpeg was actually doing. I expected that it was serving up the source stream using it's own local rtsp service on rtsp://localhost:8554/ but that wasn't working for me. And when I ran netstat or Get-NetTcpConnection I couldn't see any evidence that there was anything listening on localhost:8554.

Eventually I discovered that FFmpeg was trying to publish the stream to localhost:8554 and I needed an RTSP server there to receive that stream and relay it. Since I'm working on a Windows server right now, I found a tool with a Windows binary called MediaMTX that would act as a "media router". The default configuration file included in the download for the latest release was all I needed for my purposes, but there looks to be plenty of customization available along with options for enabling authentication for both publishing and consuming streams.

Transcoding

Once I fired up ffmpeg and mediamtx I was able to use VLC to connect to rtsp://localhost:8554/profile1, but I was still not able to see video in XProtect. The errors in the logs were a bit different though.

Universal1ChAdv.log

INFO  NmGenericCodecs::CmRTSPConnection::RtspConnect()@RTSPConnection.cpp:122   RTSP Connect: [0] [127.0.0.1]
INFO  NmRealTimeStreamProtocol::CmSrtpSession::CmSrtpSession()@SrtpSession.cpp:29   SRTP: srtp_init() - OK
INFO  GetInfo()@DeviceFunctions-OSD.cpp:380 ENTER GetInfo(127.0.0.1:21:8080)
INFO  GetInfo()@DeviceFunctions-OSD.cpp:380 EXIT GetInfo(127.0.0.1:21:8080)
ERROR NmRealTimeProtocol::CmPayloadVideoH265::processH265Packet()@PayloadH265.cpp:175   ** NOT IMPLEMENTED - CmPayloadVideoH265::processH265Packet PAYLOAD_AP ***
ERROR NmRealTimeProtocol::CmPayloadVideoH265::processAPpacket()@PayloadH265.cpp:131 ** NOT IMPLEMENTED - CmPayloadVideoH265::processAPpacket ***
ERROR NmMultiCodec::CmH265Codec::DoThreadWork()@H265Codec.cpp:79    Failed to get H265 NAL packet!
ERROR NmMultiCodec::CmH265Codec::DoThreadWork()@H265Codec.cpp:100   Failed to get and process NAL packet!
ERROR NmMultiCodec::CmMultiCodec::SetErrorState()@MultiCodec.cpp:704    Setting internal error state for device [127.0.0.1:21:8080]
INFO  NmGenericCodecs::CmRTSPConnection::RtspDisconnect()@RTSPConnection.cpp:737    RTSP Disconnect: [0] [127.0.0.1]
INFO  NmRealTimeStreamProtocol::CmSrtpSession::~CmSrtpSession()@SrtpSession.cpp:53  SRTP: srtp_shutdown() - OK
INFO  NmMultiCodec::CmMultiCodec::DoGetLastMediaDataBlock()@MultiCodec.cpp:579  The connection isn't established.
INFO  CloseMediaStream()@DeviceFunctions-OSD.cpp:1251   ENTER CloseMediaStream(127.0.0.1:21:8080,0,0,0)
ERROR NmMultiCodec::CmMultiCodec::CloseMediaConnectionInternal()@MultiCodec.cpp:517 Closing the current media connection!
INFO  NmGenericCodecs::CmRTSPConnection::RtspDisconnect()@RTSPConnection.cpp:737    RTSP Disconnect: [0] [N/A]
INFO  CloseMediaStream()@DeviceFunctions-OSD.cpp:1251   EXIT CloseMediaStream(127.0.0.1:21:8080,0,0,0)
INFO  OpenMediaStream()@DeviceFunctions-OSD.cpp:1188    ENTER OpenMediaStream(127.0.0.1:21:8080,0,0,0)
INFO  OpenMediaStream()@DeviceFunctions-OSD.cpp:1188    EXIT OpenMediaStream(127.0.0.1:21:8080,0,0,0)

I found some suggestions online that this "Failed to get H265 NAL packet!" error could be related to a lack of support for "aggregation packets" in XProtect's universal driver, but I'm not very well informed on the rtp/rtsp protocols and what that actually means, so I tweaked my ffmpeg command a bit so that it would transcode the original h265 stream to h264, and that worked perfectly!

Using FFmpeg to syndicate an RTSP feed with transcoding

ffmpeg -rtsp_transport tcp -i "rtsp://username:password@10.10.10.10:8554/profile1" -c:v libx264 -f rtsp rtsp://localhost:8554/profile1

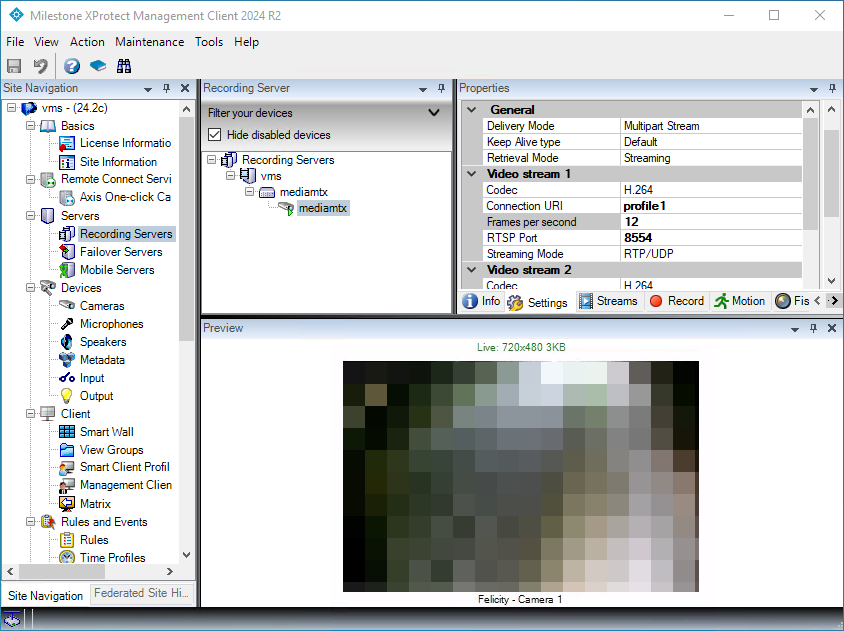

Once I allowed FFmpeg to transcode from the source H.265 stream to H.264, XProtect was able to retrieve the stream and my camera was finally online in the VMS.

Alternative media router

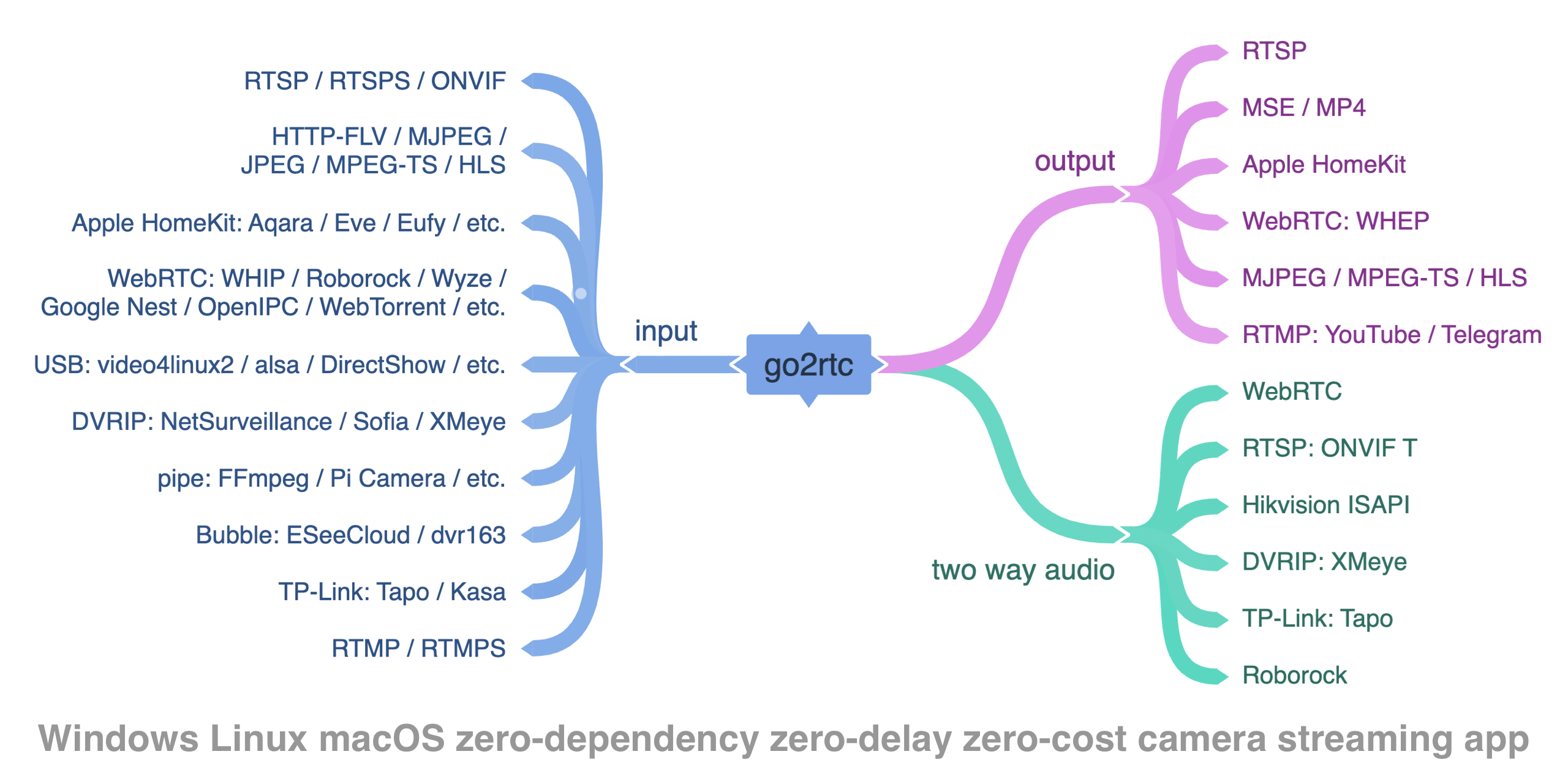

After sharing my experience with MediaMTX with one of my coworkers, he pointed out that he has had success with a tool called go2rtc in the past. I haven't used it yet, but based on a quick look at the GitHub repository, it may be a simpler, and potentially higher performance tool for the same job.

Final thoughts

This is by no means a recommended pattern for a production system. There are numerous issues here...

1. What happens if the ffmpeg and/or mediamtx processes are terminated? Unless you wrote some tooling around this, you would have to re-run the commands to fire them up after a crash or a system restart. Oh, and you better not log out of Windows...
2. With that second ffmpeg command, the video is being transcoded. Depending on the build of ffmpeg you're using, it may or may not be using hardware acceleration to help with the transcoding, but either way this is adding more compute requirement than if the source video stream just worked in XProtect.
3. The default mediamtx configuration allows anyone to publish a stream, including attempting to overwrite the stream you are pushing from ffmpeg. I don't actually know what happens if a second client tries to publish the same stream but either way, the default configuration is not hardened and thus should never be a part of any production surveillance stack.
4. This was "easy" to do with one camera, but if you have 100 or 1k+ cameras, you have a lot of tooling to write to make the setup reliable and maintainable.

I'm sharing my notes here as I think it could be helpful in the future for myself or others while troubleshooting an RTP/RTSP streaming issue. Knowing that ffmpeg can process the stream and syndicate a compatible stream is a useful piece of information to share with, in this case, the Milestone Systems device driver team responsible for maintaining the universal driver. Use it at your own risk!
